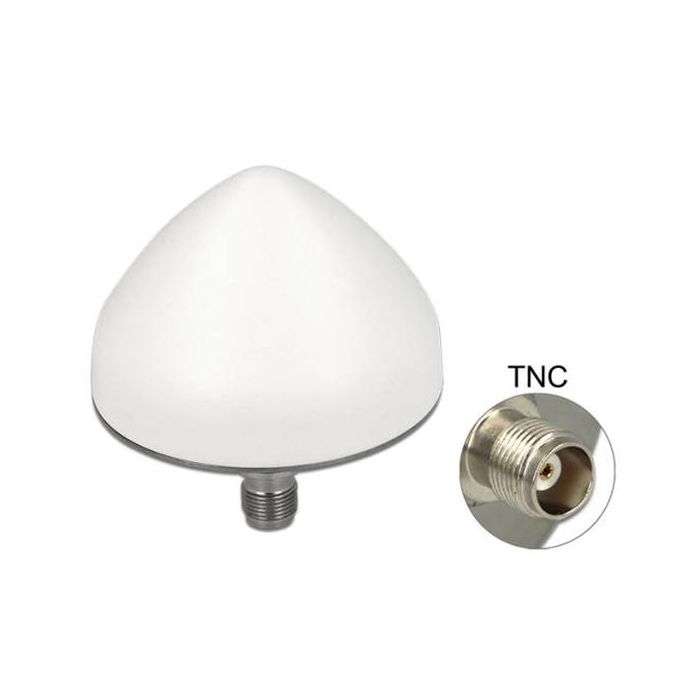

Navilock NL-250GG GNSS GLONASS GPS GALILEO antenna TNC active outdoor

This antenna by Navilock can be used on GNSS devices to receive GPS, GLONASS and GALILEO satellite signals at the same time.

Specifikace
• Connector:
1 x TNC jack
• GNSS:
Frequency range:
Galileo: L1 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Antenna Gain: 4 dBic
VSWR: 1.5
Impedance: 50 Ohm
Polarisation: RHCP
• LNA:
Frequency range:
Galileo: L1, 1,5754200 GHz
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Operating voltage: 2.7 V - 10.0 V
Gain: 40 dB
Impedance: 50 Ohm
Current consumption: 25 mA
VSWR: 2.0
• Mounting type: screw mounting
• Housing colour: white
• Housing material: ABS
• Protection class: IP67
• Suitable for outdoor: yes
• Operating temperature: -40 °C ~ 85 °C
• Diameter: 66.5 mm
• Height: 46 mm
• Thread type: M18
• Surge protection: 15 kV


Obsah balení
• GNSS antenna
• 1 x rubber seal
• 1 x Washer
• 2 x Nuts


Balení
• Box
