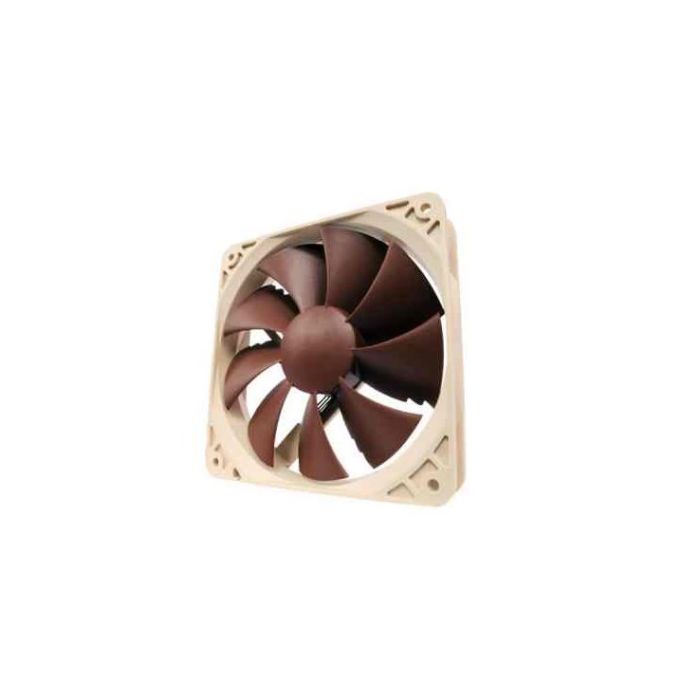

Noctua NF-P12 PWM, 120x120x25 mm

Špičkový ventilátor nové generace NF-F12 PWM. Je vybaven druhou generací osvědčených SSO ložisek a novou PWM IC technologií Smooth Commutation Drive (SCD) pro plně automatické řízení rychlosti otáček, tichý chod a malou spotřebu.

12 cm PWM Fan PWM // IC with SCD, nine blade 300-1300 RPM
Specifically conceived for pressure demanding applications such as CPU cooling, the classic NF-P12 120mm fan helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua’s novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua’s signature SSO bearing and topped off with a 6 years manufacturer’s warranty, the NF-P12 PWM is a proven premium choice for the highest demands.

Size 120x120x25 mm
Connector 4-pin PWM
Bearing SSO
Blade Geometry Presure-optimized Nine Blade Design with Vortex-Control Notches
Rotational Speed (+/- 10%) 1300 RPM
Rotational Speed with L.N.A. (+/- 10%) 900 RPM
Min. Rotational Speed (PWM) 300 RPM
Airflow 92,3 m3/h
Airflow with L.N.A. 63,4 m3/h
Acoustical Noise 19,8 dB(A)
Acoustical Noise with L.N.A. 12,6 dB(A)
Static Pressure 1,68 mm H2O
Static Pressure with L.N.A. 1,21 mm H2O
Max. Input Power 0,6 W
Max. Input Current 0,05 A
Voltage 12 V
MTBF > 150.000 h
Scope of Delivery Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
