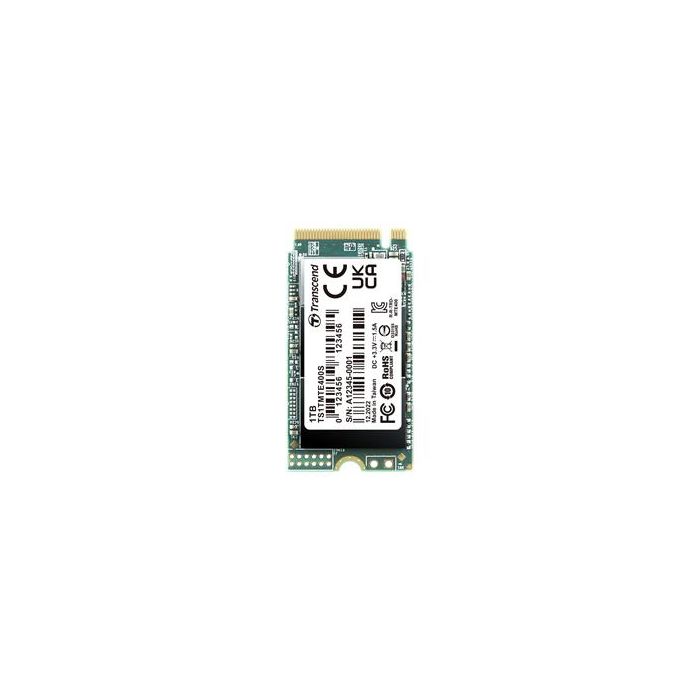

TRANSCEND MTE400S 1TB SSD disk M.2 2242, NVMe PCIe Gen3 x4 2,000MB/s R 1,700MB/s W

Dimensions
Single-sided 42 mm x 22 mm x 2.23 mm (1.65" x 0.87" x 0.09")

Weight
5 g (0.18 oz)
Type
M.2 2242

Interface
Bus Interface
NVMe PCIe Gen3 x4

Storage
Flash Type
3D NAND flash

Capacity
1 TB

Operating Environment
Operating Temperature
0°C (32°F) ~ 70°C (158°F)

Operating Voltage
3.3V±5%

Performance
Sequential Read/Write (CrystalDiskMark)
1 TBup to 2,000/1,700 MB/s

4K Random Read/Write (IOmeter)
1 TBup to 102,000/275,000 IOPS

Terabytes Written (TBW)
1 TB 400 TBW

Mean Time Between Failures (MTBF)
2,000,000 hour(s)

Drive Writes Per Day (DWPD)
0.21 (5 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

Warranty
Certificate
CE/FCC/BSMI/KC/RCM/UKCA

Warranty
Five-year Limited Warranty

System Requirement
Operating System
Microsoft Windows 7 or later
Linux Kernel 2.6.31 or later
