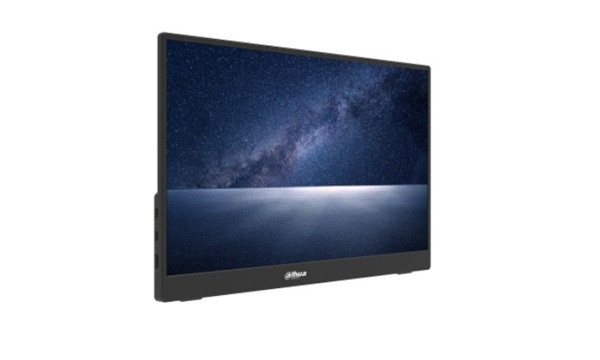

Dahua přenosný monitor PM16-F201SDT 15,6" Touch/IPS/1920x1080/6ms/250nits/1000:1/HDMI/USB/repro/černý

Display

Model


DHI-PM16-F201SDT

LCD Technology


IPS

Backlight


ELED

Screen Size


15.6 inch

Aspect Ratio


16:9

Viewing Size


344.16 (H) × 193.59 (V) mm

Screen-to-Body Ratio


?80%

Viewing Angle


178° (H)/178° (V)

Display Mode


Horizontal

Pixel Pitch


0.17925 mm × 0.17925 mm (0.00706" × 0.00706")

Pixels Per Inch


141.21

Resolution


1920 (H) × 1080 (V)

Refresh Rate


60 Hz

Display Color


16.7M colors (6 bits + FRC)

Color Gamut


45% NTSC

Brightness


250 cd/m2 (max)

Contrast Ratio


1000:1

Response Time


6 ms

Lifespan


30,000 hrs

Operation Hours


7 × 16 H

Surface Treatment


Haze 25%, 3H

Low Blue Light


Software blue light protection

Device Ports

Input Port


2 x TYPE-C (full-function), 1 x HDMI 1.4 (1920 x 1080@60 Hz)

Output Port


1 × Audio out

Speaker


2 × 1 W

Power & Environmental Conditions

Power Supply


5 VDC, 3 A

Power Type


External power adapter (without adapter)

Power Consumption


7.5 W (basic), 7.5 W (typ.), 9 W (max)

Standby Power Consumption


<0.5 W

Operating Temperature


0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity


10% - 85% (RH)

Storage Temperature


–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity


5% - 90% (RH)

General

Inclined Angle


90°

Product Dimensions


355.4 mm × 223.2 mm × 12.5 mm (13.99" × 8.79" × 0.49") (W × H × D)

Package Size


398 mm × 283 mm × 59 mm (15.67" × 11.14" × 2.32") (W × H × D)

Frame Width


U/L/R/D: 5.4 mm/5.4 mm/5.4 mm/21.5 mm(0.21" / 0.21" / 0.21" / 0.85")

Net Weight


0.87 kg (1.92 lb)

Gross Weight


1.4 kg (3.09 lb)

Casing Color


Black

Control Mode


Four-button

Status Indicator Light


Yes

Wall Mount VESA


75 mm (2.95")

Accessory


Type-C cable (full-function), HDMI cable, USB to Type-C cable, user manual (QR code sticker), QSG, regulatory manual, energy efficiency label, storage bag

Optional Accessory


Wall mount

Touchscreen

Response Time


?10 ms

Touch Technology


Capacitive

Attachment Method


Zero Air Gap

Touch Points


10

Touch Accuracy


± 1 mm (0.04") (over 90% area)

Valid Touch


2 mm (0.08")
