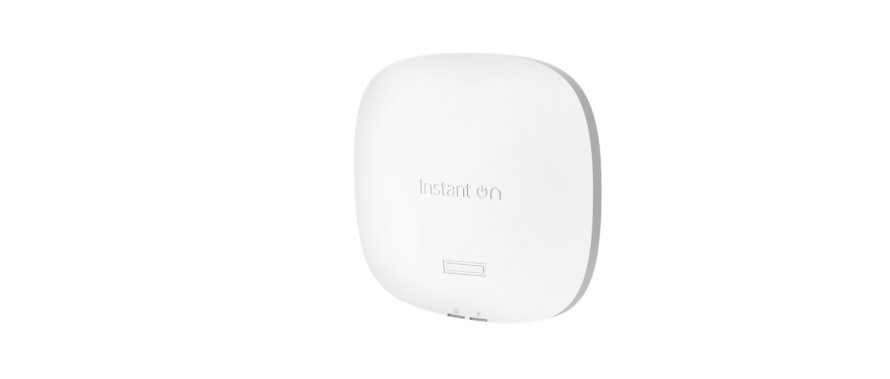

Instant On AP25 (RW) 4x4 Wi-Fi 6 AP

Instant On AP25 (RW) 4x4 Wi-Fi 6 AP

The HPE Networking Instant On Access Points AP25 is our top performer, with a 4x4 antenna array that supports 4 spatial streams to provide coverage and speed in device-dense networks, and is best if used in common areas where 100 or more of your customers can gather.

CertificationsWi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input voltagePoE: 802.3at (class 4) DC power (12V)

Note: Power sources are sold separately unless you purchase the bundle SKU

Wi-Fi antennaAntennas: Dual omni-directional 4x4 MU-MIMO
Antenna Gain: 3.7 dBi in 2.4GHz 4.5 dBi in 5 GHz
Maximum transmit power:
5 GHz band: +24 dBm (+18 dBm per chain, 6 dB MIMO gain)
2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)

Connectivity, standardUltra-fast 802.11ax, 4x4:4

Ports1x 2.5 GbE Base-T uplink port
DC power connector
Bluetooth Low Energy (BLE)
LED status indicators
Reset/LED control button
Kensington security slot

MountingCeiling/Wall mount clip

Power consumptionMax power consumption (worst-case): 20.1W (PoE), 15.9W (DC)

Radio coverageDual-radio 802.11ax
4x4 5 GHz MU-MIMO
2x2 2.4 GHz MU-MIMO

WarrantyInstant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period.
Community support is available for the life of the product.

Detailed product descriptionThe HPE Networking Instant On Access Points AP25 is our top performer, with a 4x4 antenna array that supports 4 spatial streams to provide coverage and speed in device-dense networks, and is best if used in common areas where 100 or more of your customers can gather. The AP25 2.5 GbE uplink port enables more network bandwidth to support the wireless maximum 5.3 Gbps throughput for connected clients compared to traditional 1 GbE uplink in other Wi-Fi 6 access points.

DifferentiatorIn the Box:
HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable

Add PoE or DC power source
For use in those countries and regions where no specific regulatory domain is required.

Weight1.18 kg (2.6 lb)

Dimensions5.1 x 20.3 cm (2 x 8 x 8 in)
